For Producing High-speed Rail Station Construction Materail Channel Roll Forming Machine Manufacture Line

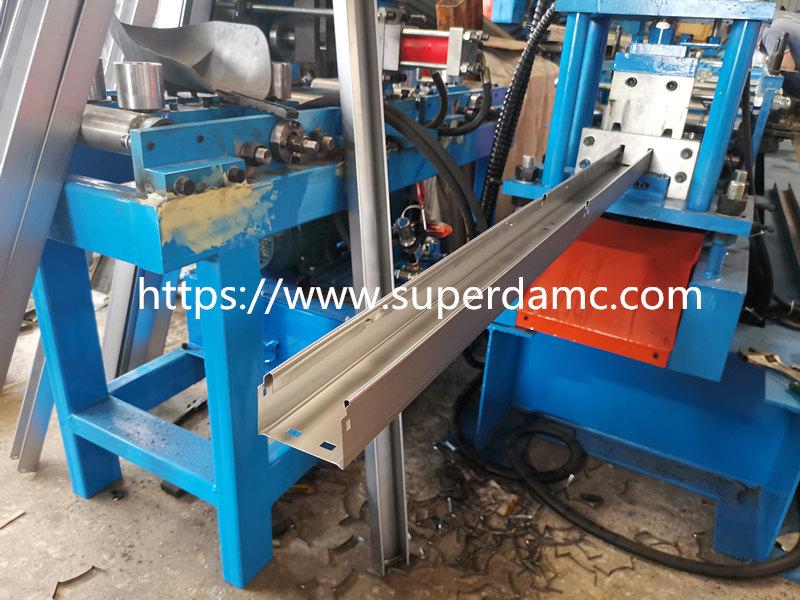

Width 126mm width channel with hole punch automatic and PLC control system.
Steel Channel roll forming machine production line process
Uncoiler straightener 2 in 1 → Guide device → Hole punch →roll forming machine →shear device (including knife)→ finished product rack
https://www.superdamc.com
sales@superdamachine.com
2 in 1 Uncoiler straightener
1,Type Manual Expansion
2,Parameter
1）Passive discharge
2） Coil weight：< 2T
3）Coil inner D.：φ450mm-φ530mm
4）Max. Width.400mm
5) Thickness .0.4-1.6mm
6) Straightener roller :7 pcs
8) Power.1.5kw
Good quality straightener
Servo Feeder
3.1 Max. feeding width 400mm
3.2 Feeding thickess 0.4-1.6mm
3.3 Motor,1.3ＫＷ(Yaskawa)
Main Forming machines (for panel width 65mm with reinforcemnt design )
5.1 Forming Roller：18 stations，and add Rub-roll, To make sure the surface profile no scratches.
5.2 Side Panel：T.18mm ,A3 steel Heavy duty 。
5.3 Rolling speeding: 2-8 m/min。
5.4 Roller material：#45，overall quenching, hardness HRC56-62 ℃.
5.5 Motor power：7.5KW。
5.6 Main Roller ：￠65mm，45 #。
5.7 Equipment base: 400# H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
