Electrical Switch Box Rolling Form Machine

  • Electrical Switch Box Rolling Form Machine
  • Electrical Switch Box Rolling Form Machine
Model No.︰YX120
Brand Name︰Superda
Country of Origin︰China
Unit Price︰US $ 56000 / pc
Minimum Order︰1 pc
Share on:

 Total 19 Related Items
Prev1516171819Next

Product Description

Superda electrical switch box roll forming machine production line for making generator distribution panel, junction box metal, circuit breaker box etc carbon steel enclosure & stainless steel box.

https://www.superdamc.com

sales@superdamachine.com

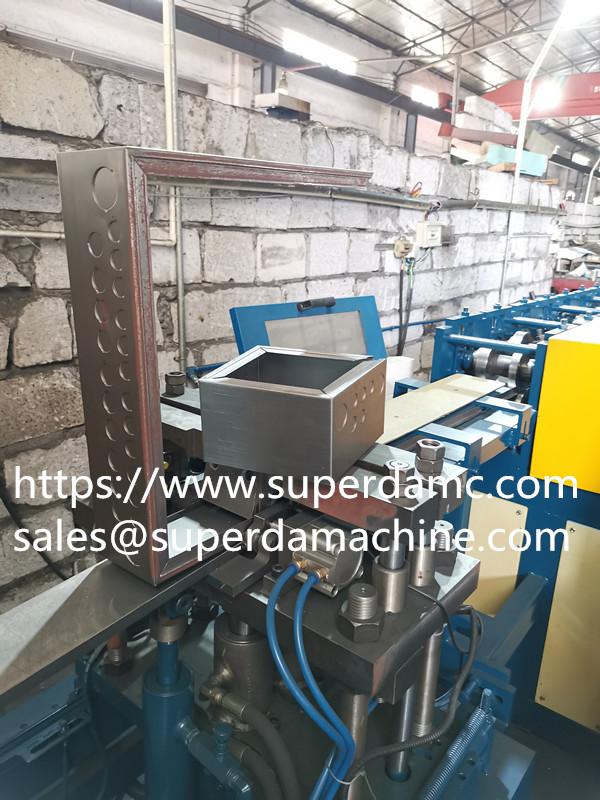

Electrical Switch Box Roll Forming Machine



Wall mount electrical cabinet enclosure & switch box projector solution

Superda Machine design for fabricating all kinds of electrical industry enclosures, cabinet structural frame. High effeciency steel box production rate.  Our selection includes server racks, aluminum extrusion enclosures, server enclosures, control consoles, carbon steel box, stainless steel enclosures, switch box, climate control products, indoor outdoor metal box, wall mount, wall resessed small electrical box as well as a range of compatible accessories metal profiels roll forming machine.



Electrical enclosure Production machine technical parameters

Item

Technology   parameter

Material

Material

cold-roll   strip,galvanized steel strip

Thickness

1.0-1.5mmbase on 1.5mm design, when T.1mm effect   alittle not good as 1.5mm

Coil   Inner

Ф360—Ф510

Process

Form   Speed

0-13m/min

Length

Not   limit

Quality

Length   Precision

L≤1000mm±0.5

Straight,

Deflection

L≤1000mmBend no more than 1mmDeflection no more than 2mm

Forming   size

As   per design



Electrical distribution board roll forming machine production line process



Uncoiler→ Straightening→Servo feeder→Hydraulic device→ Guide device → Roll forming machine →Bending device



Carbon steel & stainless steel box production line technology explaination

This production line is equipment for production of distribution boxes. The strip coil to be processed is manually placed on the uncoiler, and then corrected and tensioned. After leveling, it enters the hydraulic pre-punching and punching notch, and is sent to the forming machine by the guide device to form. Under the frictional damping action of the forming roller and pressure roller, after entering the bending part at a linear speed of 0-13m, the box is cut and bent as required, and then manually packed away. This production line produces 2-3 enclosures per minute. the production box quantity speed according to different product specifications.

Electrical Switch Box Roll Forming Machine



Electric box production line main technical parameters

1.Details of accessory brand

No.

Name

manufacturer

1

Encoder

Omron

2

Touch Screen

Wienview

3

Programmable controller (PLC)

Mitsubishi

4

Low-voltage circuit breaker

Chint

5

AC contactor

Chint

6

Inverter

Mitsubishi

7

Hydraulic Solenoid Valve

Shun Xin, Taiwan

8

Guide rail

Hiwin Taiwan

9

Server System

Mitsubishi

Payment Terms︰By TT
